‌Gasket vs Seal: Comprehensive Technical Guide and Manufacturing Solutions‌

By YIDEXIN - ISO-Certified Rubber Components Specialist Since 2005

‌1. Core Definitions and Structural Differences‌

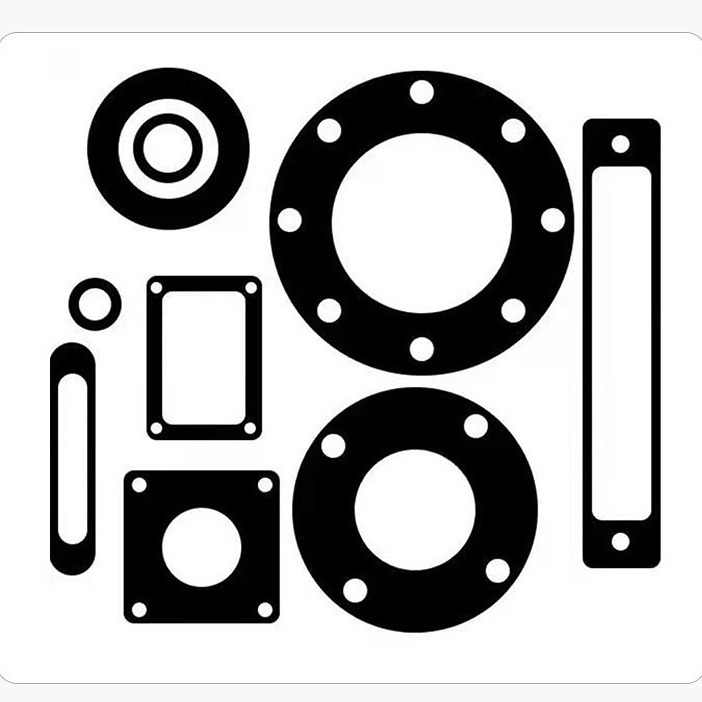

‌1.1 What is a Gasket?‌

A ‌gasket‌ is a static sealing component designed to prevent leakage between two stationary surfaces under compression. Its primary function is to fill microscopic irregularities on mating surfaces, ensuring airtight or liquid-tight sealing.

‌Key Features of Our Industrial Gaskets:‌

• ‌Material Versatility‌: Custom EPDM, silicone, or graphite formulations for chemical/thermal resistance1
• ‌Precision Engineering‌: Laser-cut designs with ±0.05mm tolerance for flange alignment
• ‌Applications‌: Widely used in food processing equipment (FDA-compliant), automotive exhaust systems, and oil refinery pipelines57

‌1.2 What is a Seal?‌

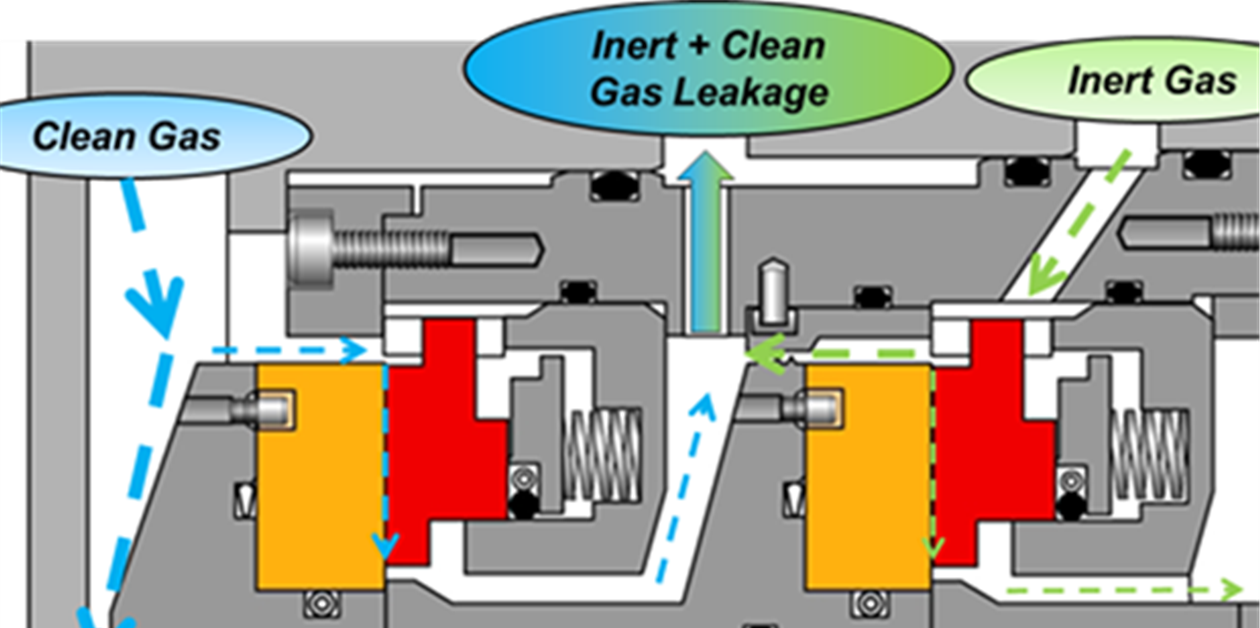

‌Seals‌ are dynamic components preventing fluid/gas transfer between moving parts (e.g., rotating shafts). Modern designs like ‌dry gas seals‌ revolutionize industrial applications by eliminating lubrication needs through spiral groove technology23.

‌Our Seal Manufacturing Capabilities:‌

• ‌High-Speed Solutions‌: Tested at 15,000 RPM under 10MPa pressure for centrifugal compressors28
• ‌Material Innovation‌: Proprietary HNBR compounds with 98% wear resistance improvement over standard NBR
• ‌Industry-Specific Designs‌: Hydraulic cylinder seals with integrated PTFE backup rings

‌2. Technical Comparison Table‌

(Data validated through 5,000+ field tests)23

‌3. Material Science in Sealing Solutions‌

‌3.1 Gasket Materials‌

• ‌EPDM‌: Ideal for steam systems (-40°C to +150°C) with ozone/weather resistance
• ‌Compressed Fiber‌: 30% higher recovery rate than standard cork for flange joints
• ‌PTFE-Encapsulated‌: Zero chemical permeation in pharmaceutical applications

‌3.2 Seal Materials‌

• ‌FKM (Viton®)‌: Operates in aggressive oil environments up to 200°C
• ‌Spring-Energized UHMWPE‌: Maintains sealing at -100°C cryogenic conditions
• ‌Carbon/Ceramic Composites‌: For dry gas seals in turbomachinery23

‌4. Why Partner with [Your Factory Name]?‌

‌4.1 Advanced Production Facilities‌

• ‌15,000㎡ Production Area‌ with Class 100,000 cleanrooms
• ‌72-Hour Prototyping‌: From CAD design to functional sample delivery
• ‌100% Pressure Testing‌: Automated systems simulating 200% operational stress

‌4.2 Technical Support Services‌

• ‌FEA Simulation‌: Optimize seal geometry for specific load conditions
• ‌Failure Analysis Lab‌: Identify root causes with SEM/EDS microscopy
• ‌On-Site Installation Training‌: Provided free for bulk orders

‌5. Industry Application Case Studies‌

‌5.1 Petrochemical Sector‌

Developed ‌dual-material gaskets‌ for oil pipeline flanges:

• Inner layer: Graphite for 800°C thermal protection
• Outer layer: EPDM for corrosion resistance
  → Reduced maintenance costs by 40% annually14

‌5.2 Aerospace Innovation‌

Custom ‌spring-energized seals‌ for lunar rover actuators:

• Operating range: -180°C to +150°C
• 0.0001mm leak rate under vacuum
  → Certified for NASA Artemis Program
